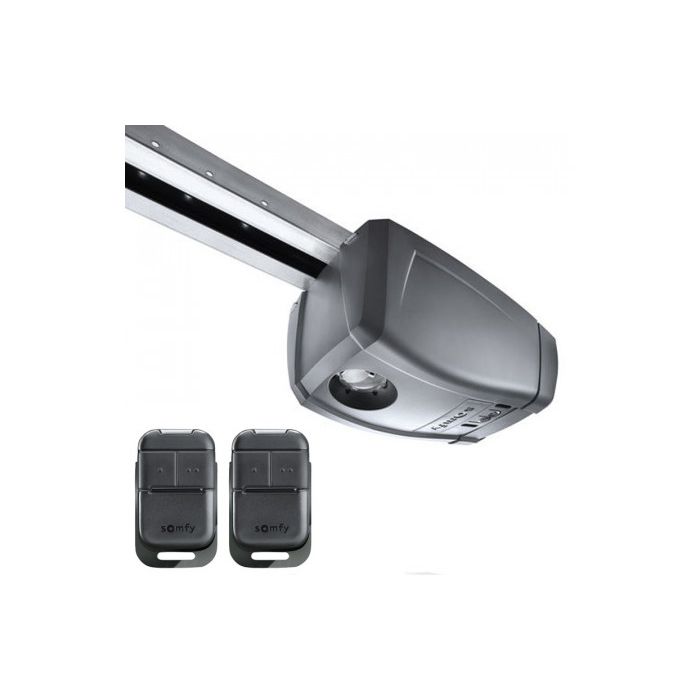

Garage Door Motor GDK 700

GDK 700

The Somfy GDK 700 allows you to operate your automated garage doors from the comfort of your car. When you're near your garage doors, simply use the remote control to open and close them, meaning you won't have to face the elements.

The unique belt transmission ensures silent operation without compromising on its strength or ease of use. The whisper quiet opening and closing function, alongside its soft start/stop system, means you never have to worry about disturbing your family members when you arrive home late.

This easy to install device also features 700Nm lifting capabilities, making it ideal for garage doors up to 70 KG and 7m². With its built in lighting, obstacle detection and burglar protection, the GDK 700 ensures security and easy access at all times.

Please read the product documentation and ensure your door is in a suitable condition and can be motorised before installation. If you are unsure, contact customer services or speak to a garage door professional.

• Silent garage door operation
• Suitable for sectional and tilt opening garage doors (max 70kg and 7m²)
• Easy to install, configure and use
• Built in burglar protection and obstacle detection
• Compatible with TaHoma - Photocells must be fitted to operate with TaHoma
• Comes with a comprehensive 5 year warranty

What's included?

• 1 Motor
• 1 Rail
• 2 Controls

• Mains supply: 230V - 50/60Hz
• Reduction gear supply: 24V DC
• Max. power consumed: 120W
• Standby consumption: 4W
• Traction force: 700 N
• Types of rail: Belt transmission
• Length of rail: 2.9m in 3 parts
• Use: 15 cycles per day for a standard rail (tested for 10000 cycles)
• Min. height under the lintel: 35mm
• Overall length: With a 2.9m rail: 3.29m (3.09m if the motor head is mounted with a 90° offset)
• Weight motor head: 4kg
• Weight rail: 9 kg
• Opening speed (in load): 14cm/s max.
• Number of channels that can be memorised: 32
• Transmitter in the kit: Keypop 2 RTS
• Somfy radio frequency: 433.42 MHz RTS
• Built in lighting: G4 24V 20W
• Operating temperature: -20° / +60°
• Packaging dimensions - L 120cm, W 33cm, D 18cm
• Warranty: 5 years
