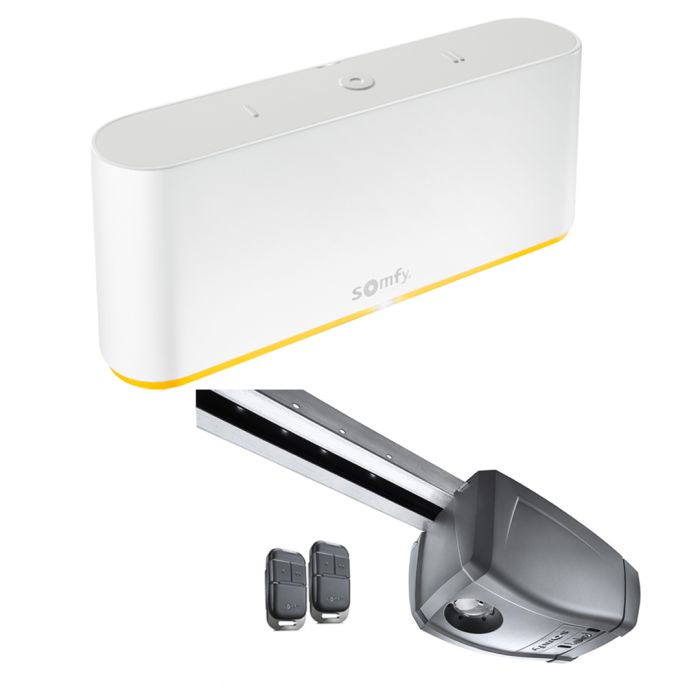

Somfy TaHoma switch + GDK 700

TaHoma switch:

From smart application to home automation, the most complete & evolutive connected experience with the TaHoma environment.

- From a touch of a button, to an app control, all the way to voice control, TaHoma switch offers an accessible to all and scalable smart home solution.

- TaHoma switch controls key home equipment of Somfy and major partners brands (shades, shutters, doors, gates, windows, heating, lighting, cameras, alarm systems and more) for more security, greater energy efficiency and enhanced comfort every day.

- With today more than 280 equipment ranges and 21 major home equipment brands, it offers one of the most complete smart home experiences.

- Thanks to the native integration of the io-homecontrol, RTS and Zigbee 3.0 protocols along with cloud compatibilities Tahoma switch is an evolutive solution, that allows people to add equipment as they’d like.

- TaHoma Switch is also compatible with Google Assistant and Amazon Alexa enlarging the user experience to voice control.

GDK 700:

The Somfy GDK 70 allows you to operate your automated garage doors from the comfort of your car. When you're near your garage doors, simply use the remote control to open and close them, meaning you won't have to face the elements.

The unique belt transmission ensures silent operation without compromising on its strength or ease of use. The whisper quiet opening and closing function, alongside its soft start/stop system, means you never have to worry about disturbing your family members when you arrive home late.

This easy to install device also features 700Nm lifting capabilities, making it ideal for garage doors up to 70 KG and 7m2. With its built in lighting, obstacle detection and burglar protection, the GDK 700 ensures security and easy access at all times.

• Silent garage door operation, thanks to the belt transmission
• Suitable for sectional and tilt opening garage doors (max 70kg and 7m2)
• Easy to install, configure and use
• Built in burglar protection and obstacle detection
• Comes with a comprehensive 5 year warranty

TaHoma switch:

• Article number: 1870600
• Radio frequency: 868-870 MHz and 433.42 MHz
• Technology: io-homecontrol, RTS and Zigbee 3.0
• Connections: 1 x Micro-USB
• Current: 230 V / 5V DC 1 A
• Enclosure class: IP30
• Range: 200 meters open field
• Working temperature: 0 ° C to + 50 ° C
• Dimensions: 162 x 67.5 x 34 mm
• Weight: 213 g
• Color: White
• Location: Indoor
• Other: LED (red / green / orange / white).
• Miscellaneous: Two physical control buttons at the top of scenes.

Maximum number of connected products:

• 200 pcs (total, all technologies)
• io-homecontrol: 200 st
• RTS: 50 st
• Zigbee: 50 pcs
• Sensors / alarm sensors (Somfy): 50 pcs
• Cameras: 5 pcs
• Scenario player (Somfy): 20 pcs
• Maximum number of scenes: 40
• Philips Hue: 1 Bridge (gateway) 50 Hue products

Package contents:

• 1 pc Somfy TaHoma box
• 1 pc Power cable, Micro-USB
• 1 Getting Started Manual

Warranty: 5 years

GDK 700:

• Mains supply: 230V - 50/60Hz
• Reduction gear supply: 24V DC
• Max. power consumed: 120W
• Standby consumption: 4W
• Traction force: 700 N
• Types of rails available: Belt transmission
• Lengths of rails available: 2.9m in 3 parts
• Use: 15 cycles per day for a standard rail (tested for 10000 cycles)
• Min. height under the lintel: 35mm
• Overall length: With a 2.9m rail: 3.29m (3.09m if the motor head is mounted with a 90° offset)
• Weight motor head: 4kg
• Weight rail: 9 kg
• Opening speed (in load): 14cm/s max.
• Number of channels that can be memorised: 32
• Transmitter in the kit: Keypop 2 RTS
• Somfy radio frequency: 433.42 MHz RTS
• Built in lighting: G4 24V 20W
• Operating temperature: -20° / +60°
• Packaging dimensions - L 120cm, W 33cm, D 18cm

Package contents:

• 1 Motor
• 1 Rail
• 2 Controls

Warranty: 5 years
